20/05/2024Double Gear Pump Hydraulic Gear motor 0

price $50~$600
Pump type Heavy duty, cast iron, external meshing gear
Fluid viscosity20~100m㎡/s
speed 600-3000rpm
Import pressure-0.2-2bar
Fluid temperature-15℃~+80℃
ISO ISO 4406 C1.16/13

Product

Parameter

Application

CONTACT US

Message

Pump displacement	cm*/rev	20	25	32	40	45	50	63	73	80	100
continuous pressure	bar	280	280	280	280	280	280	250	210	210	210
intermittent pressure	bar	310	310	310	310	310	310	280	250	250	210
Minimum speed(maximum outlet pressure)	rpm	600	600	600	600	600	600	600	600	600	600
Maximum speed(inlet and maximum outlet pressure)	rpm	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000

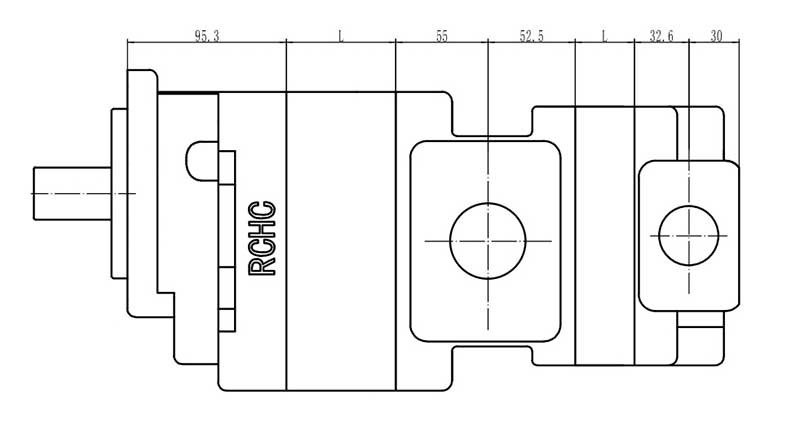

Size “L”	mm	23	26	29	35.5	38.5	42	48	54.5	61	67
