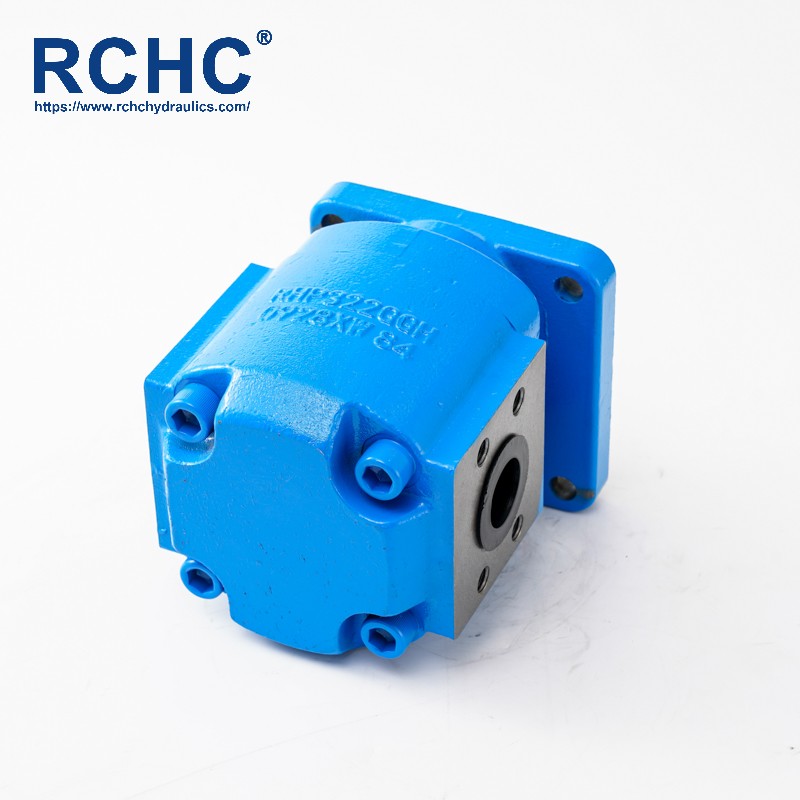

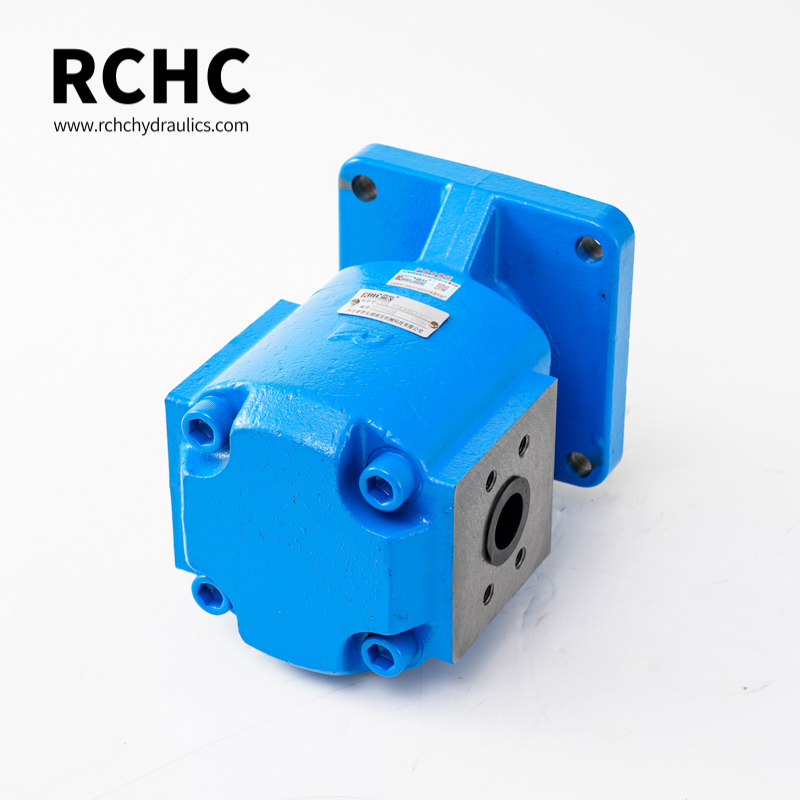

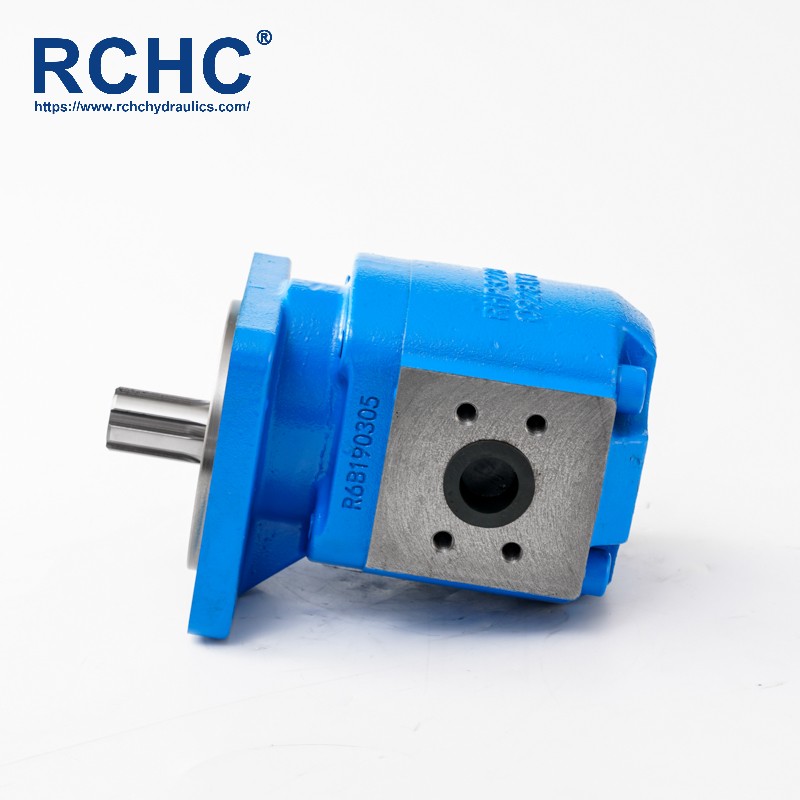

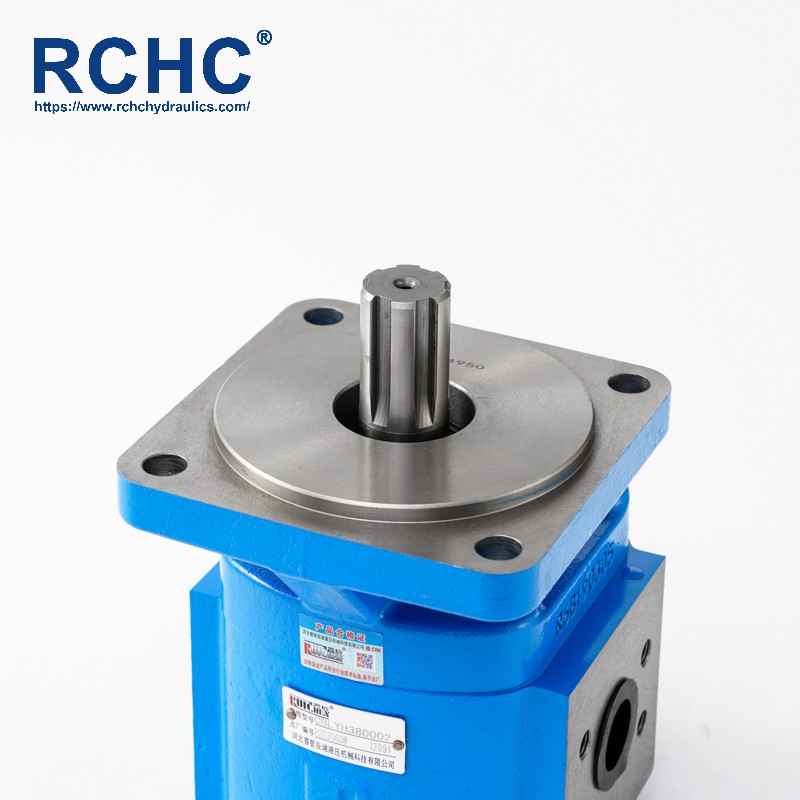

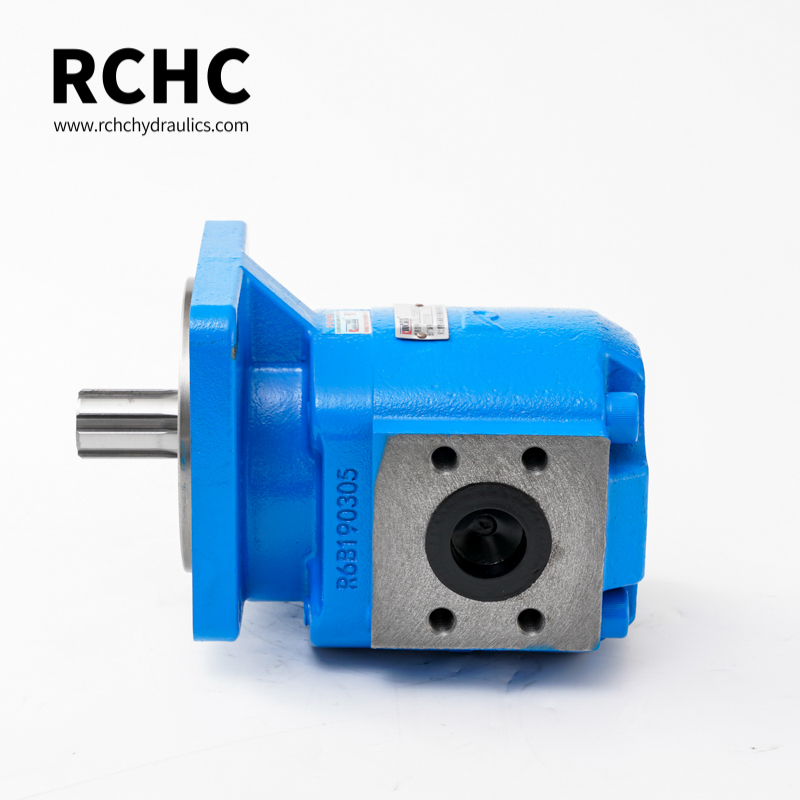

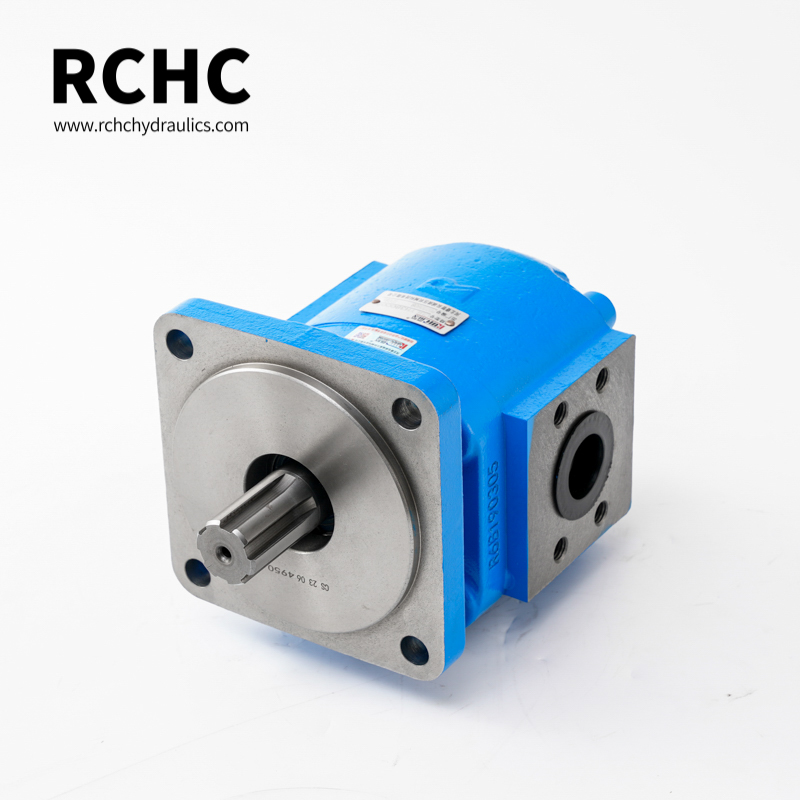

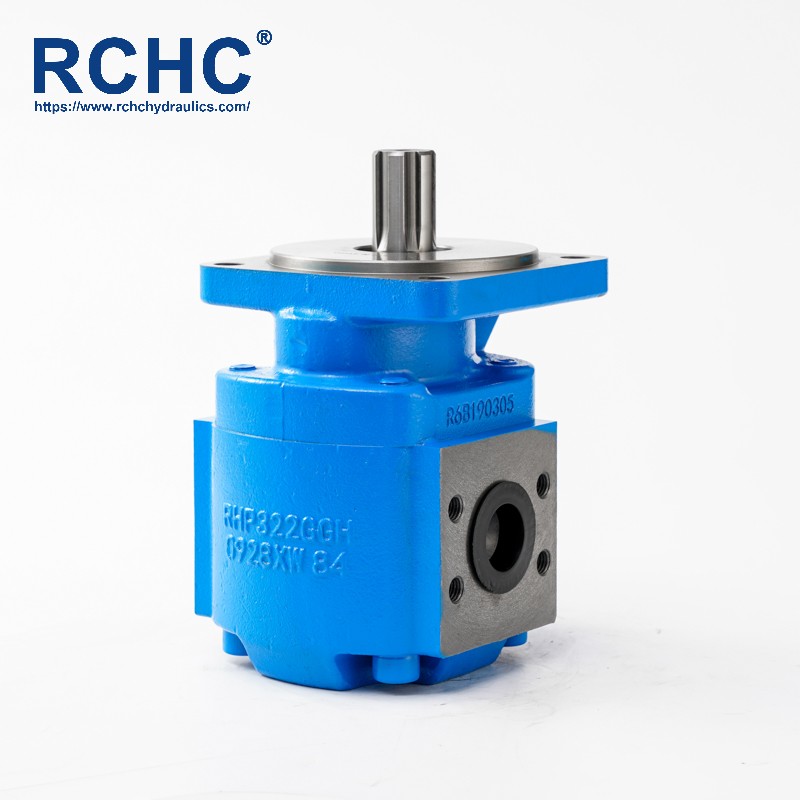

RHP4

20/05/2024Gear Pump Hydraulic Gear motor 0

price $50~$600
Pump type Heavy duty, cast iron, external meshing gear
Fluid viscosity20~100m㎡/s
speed 600-3000rpm
Import pressure-0.2-2bar
Fluid temperature-15℃~+80℃
ISO ISO 4406 C1.16/13
Multiple pumpstwin pumps and triple pumps are available

Product

Parameter

Application

CONTACT US

Message

Pump displacement	cm*/rev	25	37.5	43.7	50	62.5	75	81.2		87.5	93.7		100
continuous pressure	bar	280	280	280	280	280	250	250		250	250		230
intermittent pressure	bar	330	330	330	330	330	300	300		300	300		280
Minimum speed(maximum outlet pressure)	rpm	600	600	600	600	600	600	600		600	600		600
Maximum speed(inlet and maximum outlet pressure)	rpm	3000	3000	3000	3000	3000	3000	3000		3000	3000		3000

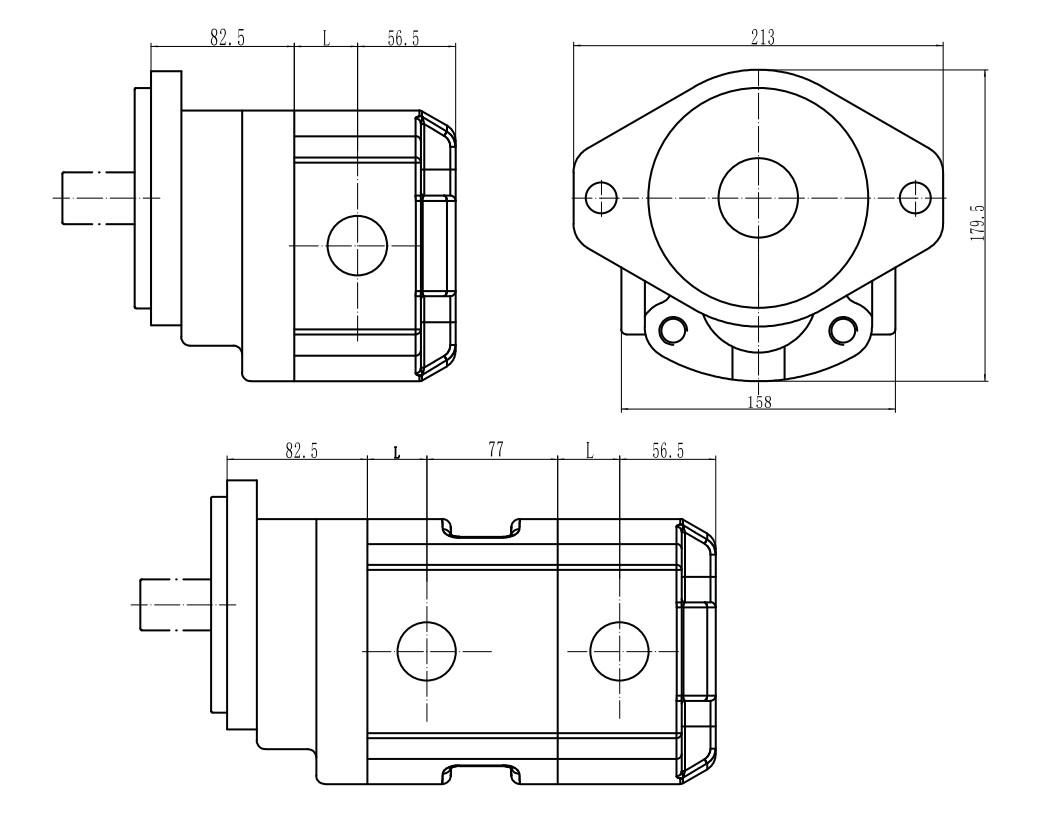

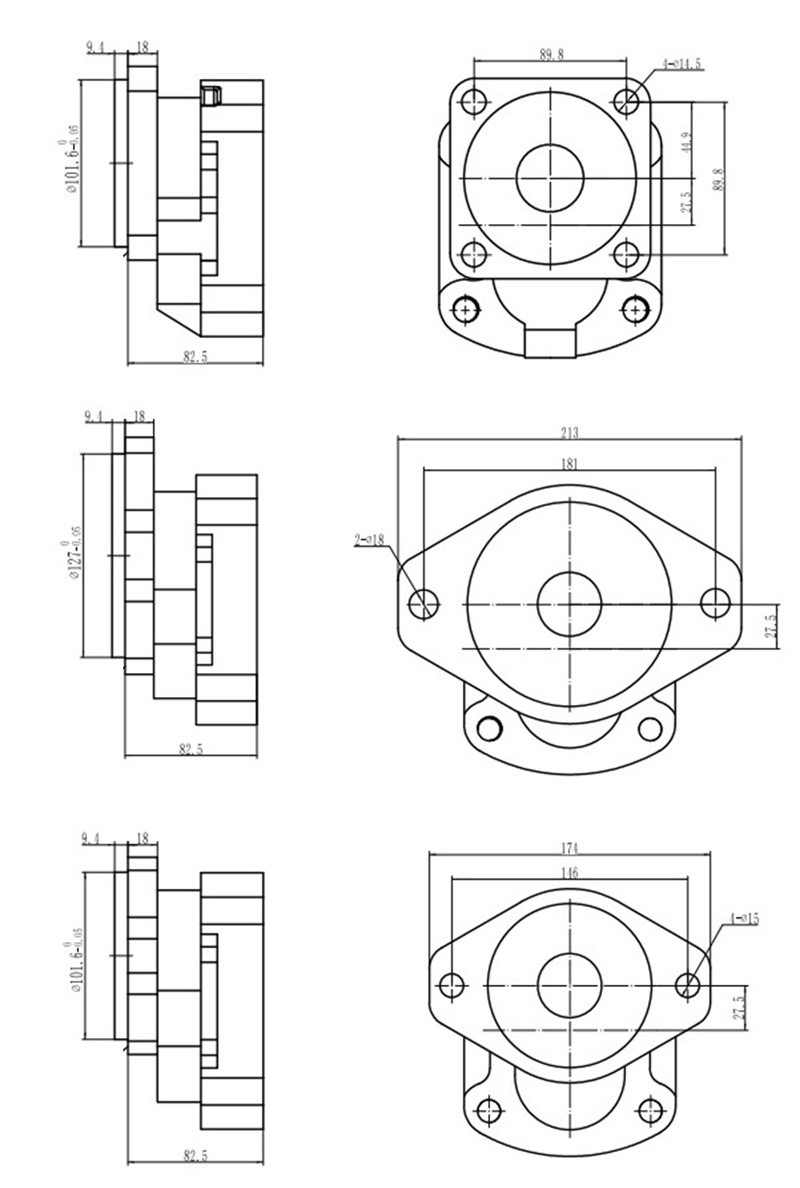

Size “L”	mm	28.7	35	38.2	41.4	47.8	54.1	57.3		59.5	63.6		66.8

Pump displacement	*cm/rev**	112.5	125	137.5	150	162.5
continuous pressure	bar	230	230	230	210	210
intermittent pressure	bar	280	280	250	250	250
Minimum speed(maximum outlet pressure)	rpm	600	600	600	600	600
Maximum speed(inlet and maximum outlet pressure)	rpm	3000	3000	3000	3000	3000
Size “L”	mm	73.2	79.5	85.9	92.2	98.6
