19/05/2024Gear Pump Hydraulic Gear motor 0

price $50~$600
Pump type Heavy duty, cast iron, external meshing gear
Fluid viscosity20~100m㎡/s
speed 600-3000rpm
Import pressure-0.2-2bar
Fluid temperature-15℃~+80℃
ISO ISO 4406 C1.16/13
Multiple pumps twin pumps and triple pumps are available

Product

Parameter

Application

CONTACT US

Message

Pump displacement	cm*/rev	10	16	20	25	32	35	40	50	63	80
continuous pressure	bar	230	230	230	230	230	230	230	230	230	230
intermittent pressure	bar	280	280	280	280	280	280	280	280	280	280
Minimum speed(maximum outlet pressure)	rpm	600	600	600	600	600	600	600	600	600	600
Maximum speed(inlet and maximum outlet pressure)	rpm	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000

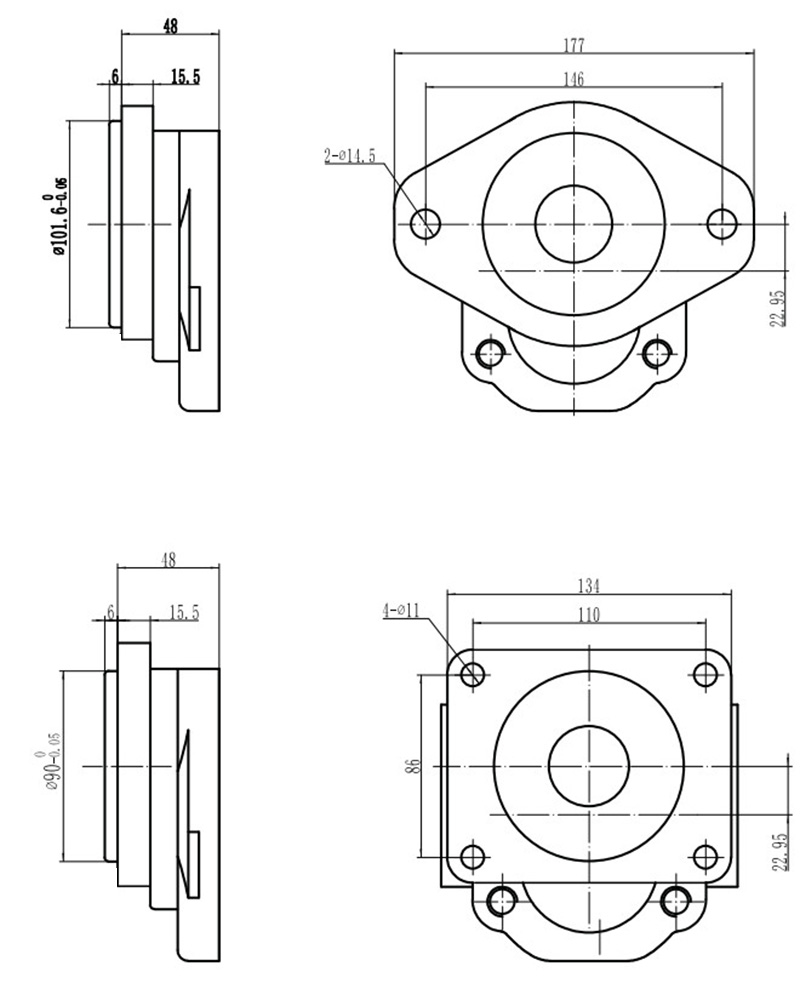

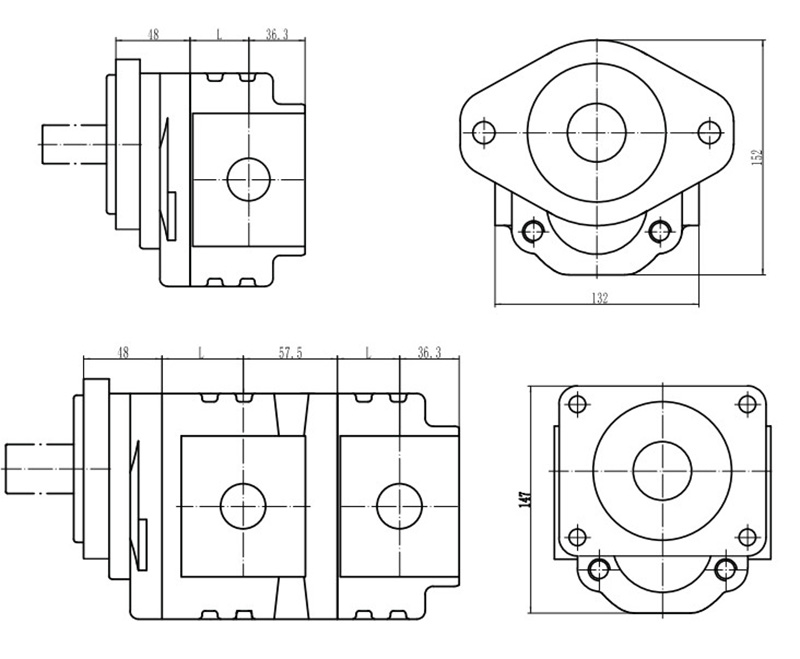

Size “L”	mm	12.9	16.9	19.4	23.4	28.4	31.1	34.4	40.4	49.4	58.4
